DIY Fascia Controllers

Full DIY Fascia Controller Interface boards

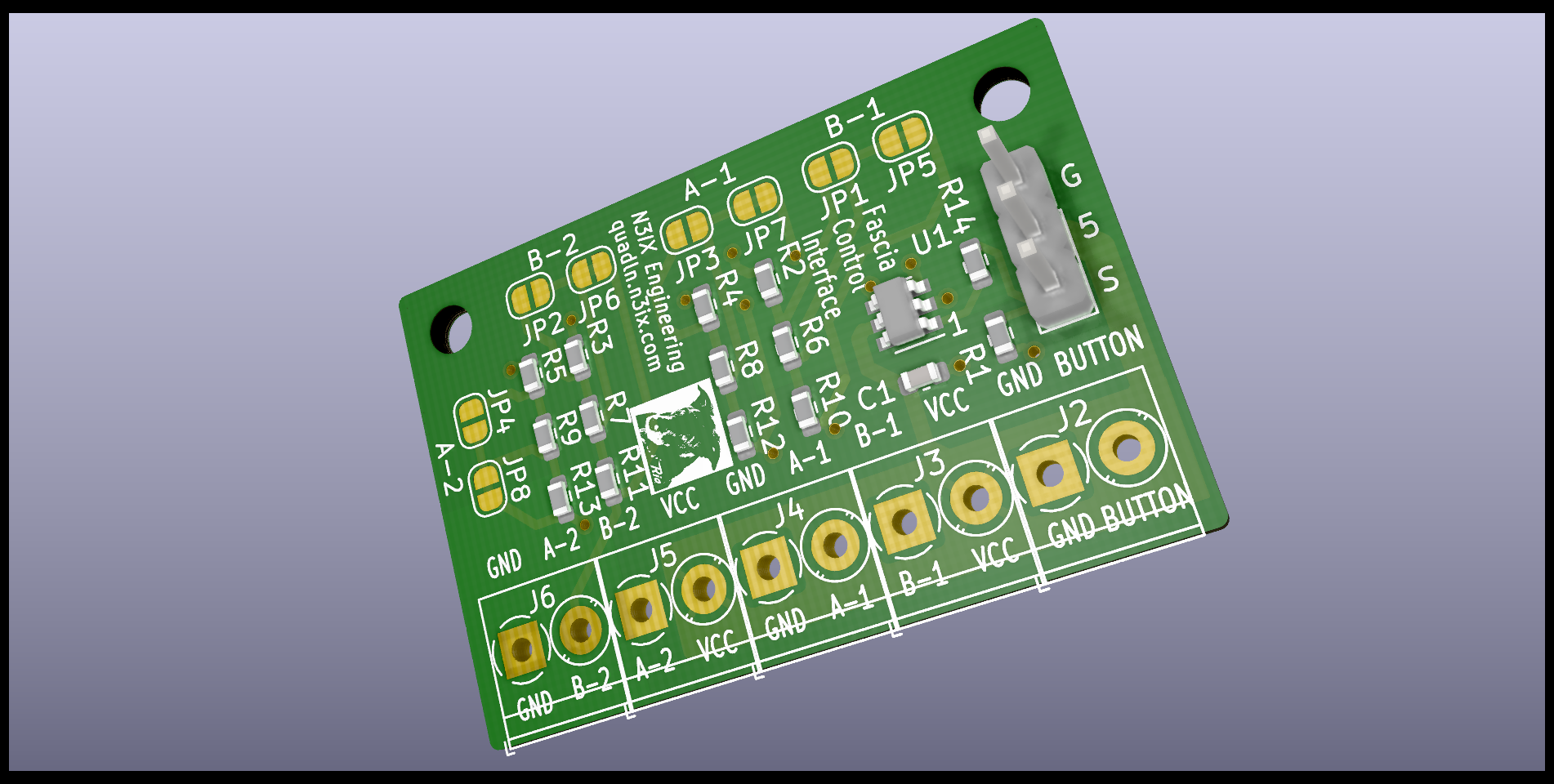

DIY Fascia Controller with Solder Pads

DIY Fascia Controller with Solder Pads

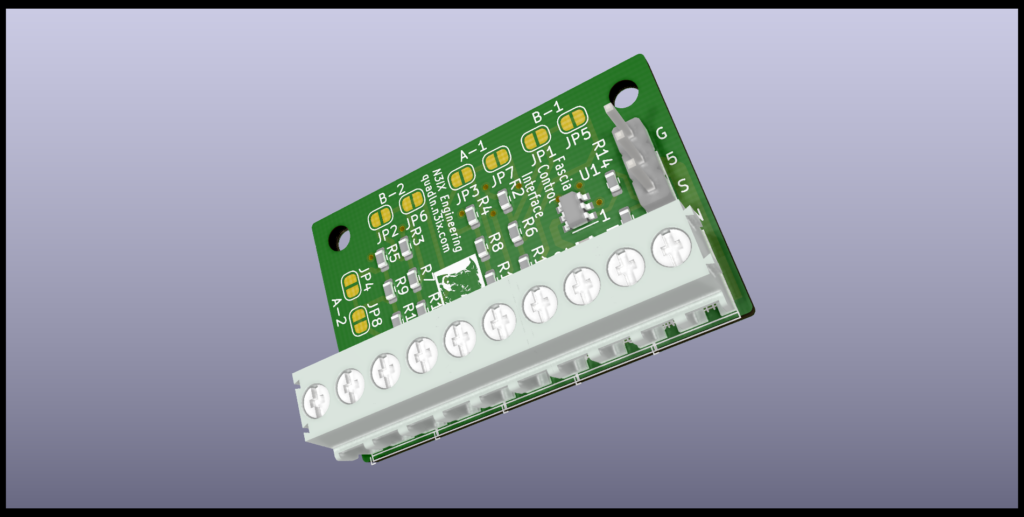

DIY FC with Screw Terminals

DIY Fascia Controller with Screw Terminals

$3.70 3.33

$4.75 4.28

DIY FC Features

  • Designed to make it as easy as possible to interface your own Pushbutton and LEDs to the QuadLN_S.
  • Handles up to two bi-color LEDs in common anode, common cathode or 2-lead form factor, or up to four single color LEDs.
  • An on-board LED driver provides plenty of LED current without adding any load to the QuadLN_S I/O pins.
  • Built-in resistors so the board is ready to go out of the box – just connect your LEDs and pushbutton.
  • Jumpers and trace cuts to adjust the LED drive levels if required.
  • Available with solder pads or screw terminals.
  • Comes with a 12″ cable that is compatible with servo extension cables.

Mini DIY Fascia Controller Interface boards

The DIY Fascia Controller is also available in this smaller version that handles one bi-color LED in common anode, common cathode or 2-lead form factor, or two single color LEDs.

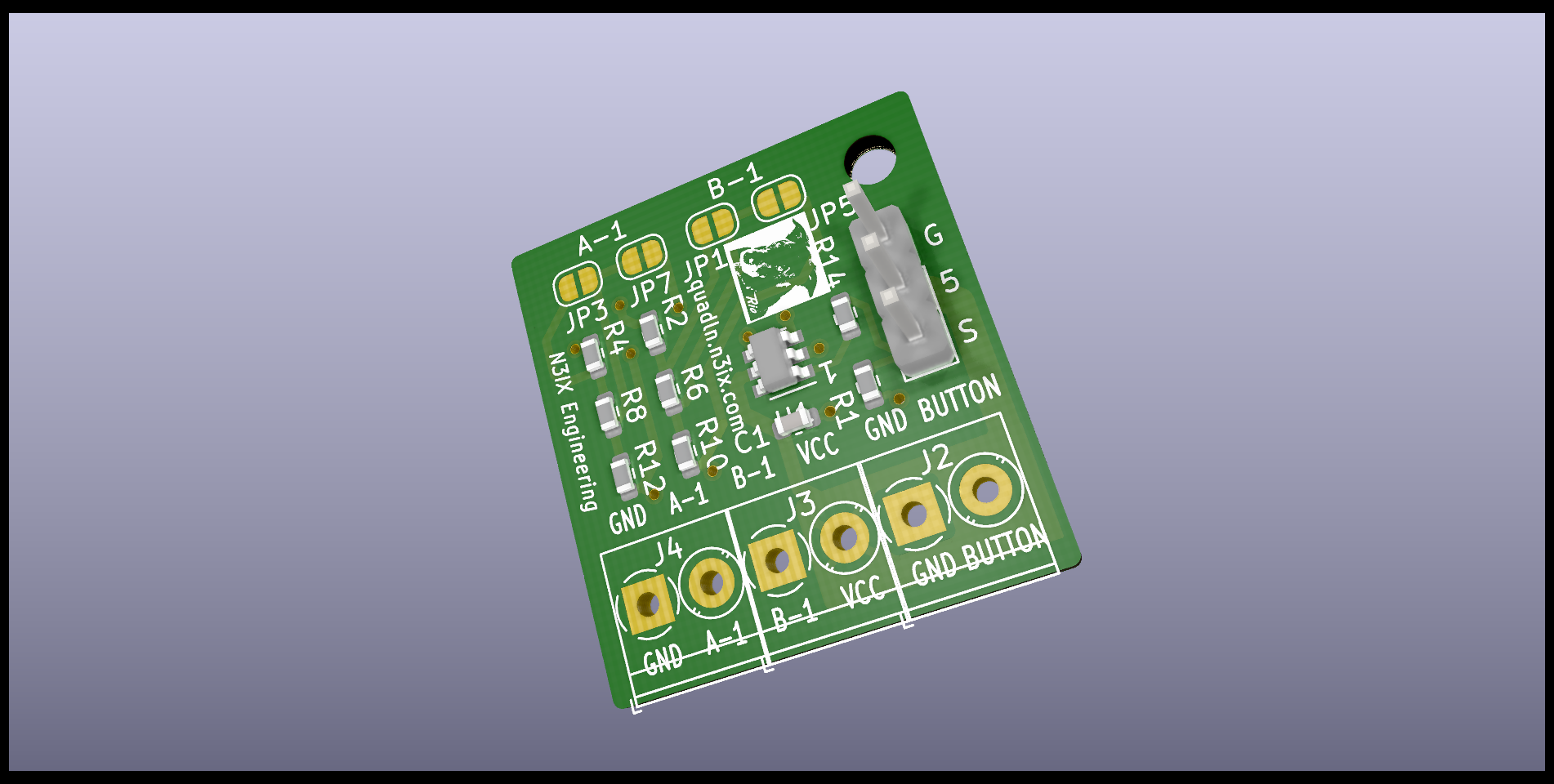

Mini DIY FC with Solder Pads

Mini DIY Fascia Controller with Solder Pads

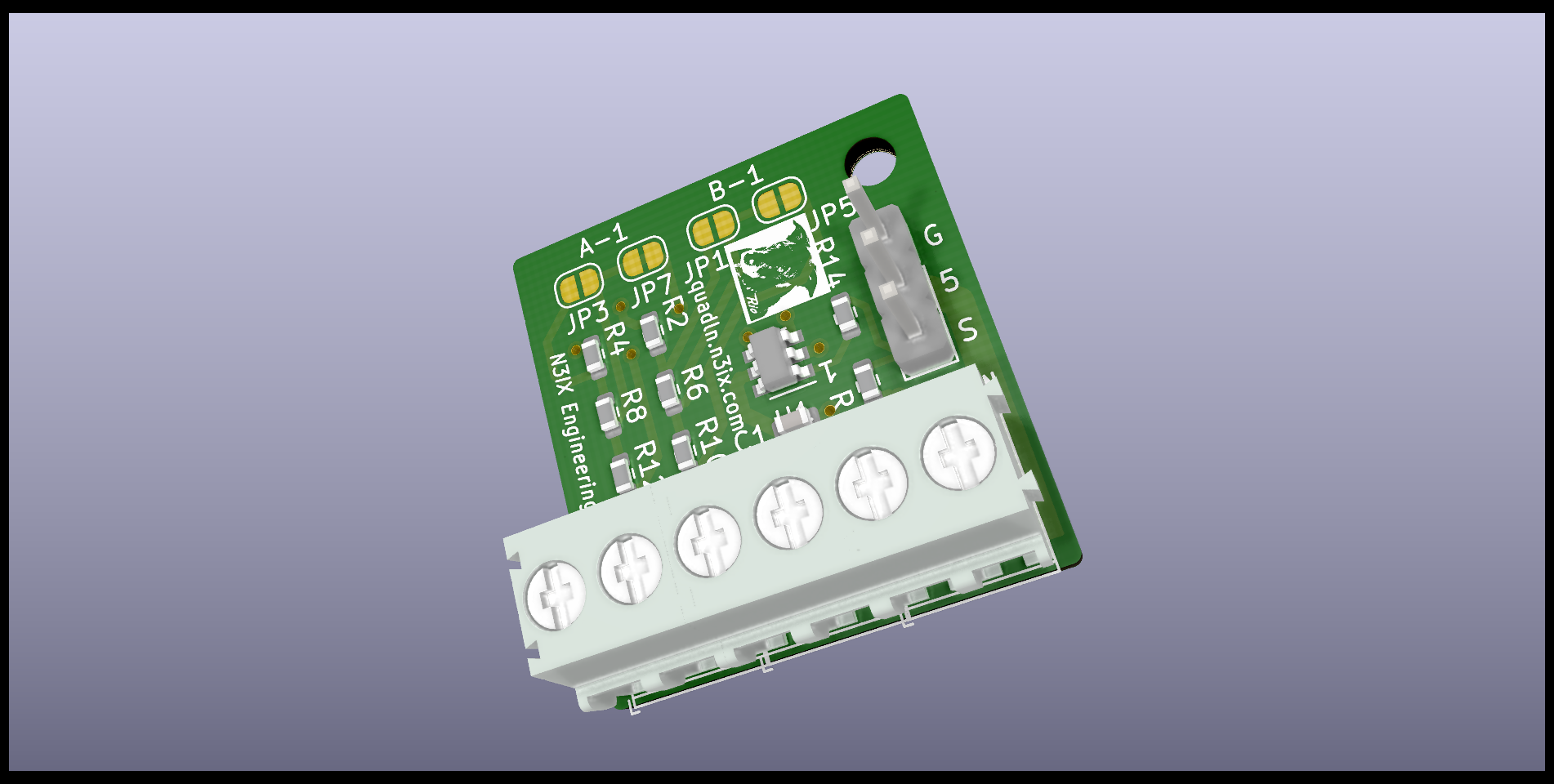

Mini DIY FC with Screw Terminals

Mini DIY Fascia Controller with Screw Terminals

$3.40 3.06

$4.25 3.83

Mini DIY FC Features

  • Designed to make it as easy as possible to interface your own Pushbutton and LEDs to the QuadLN_S.
  • Handles one bi-color LEDs in common anode, common cathode or 2-lead form factor, or two single color LEDs.
  • An on-board LED driver provides plenty of LED current without adding any load to the QuadLN_S I/O pins.
  • Built-in resistors so the board is ready to go out of the box – just connect your LEDs and pushbutton.
  • Jumpers and trace cuts to adjust the LED drive levels if required.
  • Available with solder pads or screw terminals.
  • Comes with a 12″ cable that is compatible with servo extension cables.
