Now Available With Optional 3D Printed Case
Remote Align Board with Case
$22.95 with case
Remote Align Board without Case
$17.95 without case

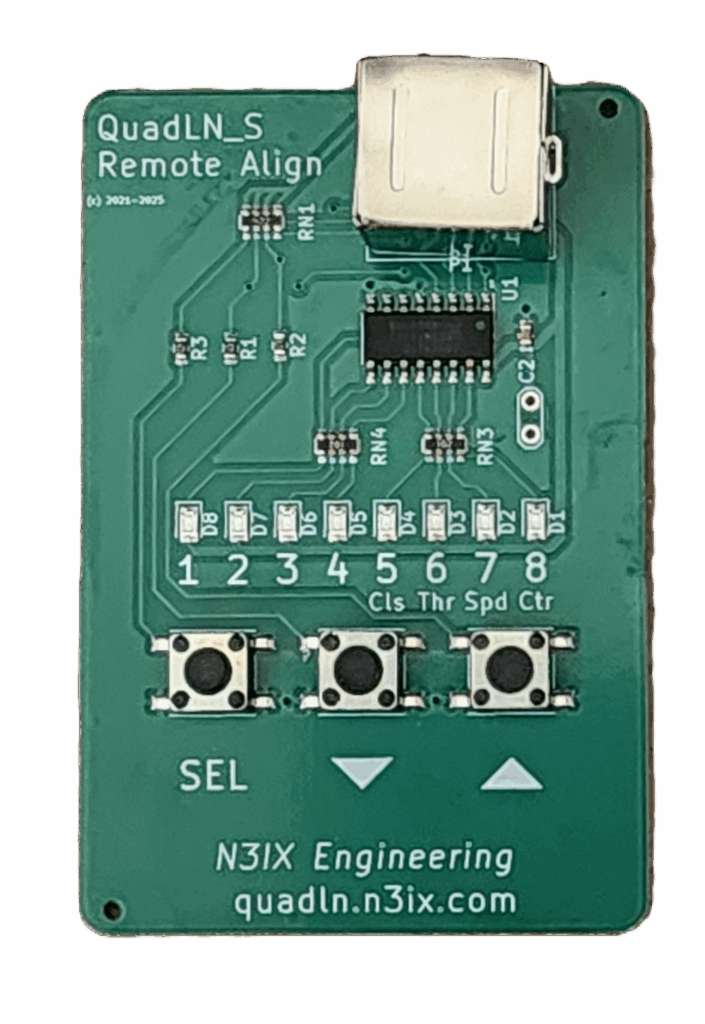

QuadLN_S Remote Align Board Features
- Adjust the travel of your Servos.
- Set Detector sensitivity.
- Adjust Signal LED brightness.
- One Remote Align Board will handle all of your QuadLN_S boards.
- Comes with a cable which allows you to stand in the aisle while aligning your servos – no more hanging upside down below the layout!
- A QuadLN_S Remote Align board is required to perform firmware updates.
- Optional 3D Printed Case diffuses the LEDs for easier viewing
- Note – the cable connector is a tight fit, so please take your time and support the mating socket when inserting or removing the cable.
The Remote Align Board Quick Start Guide is available on the Downloads page.

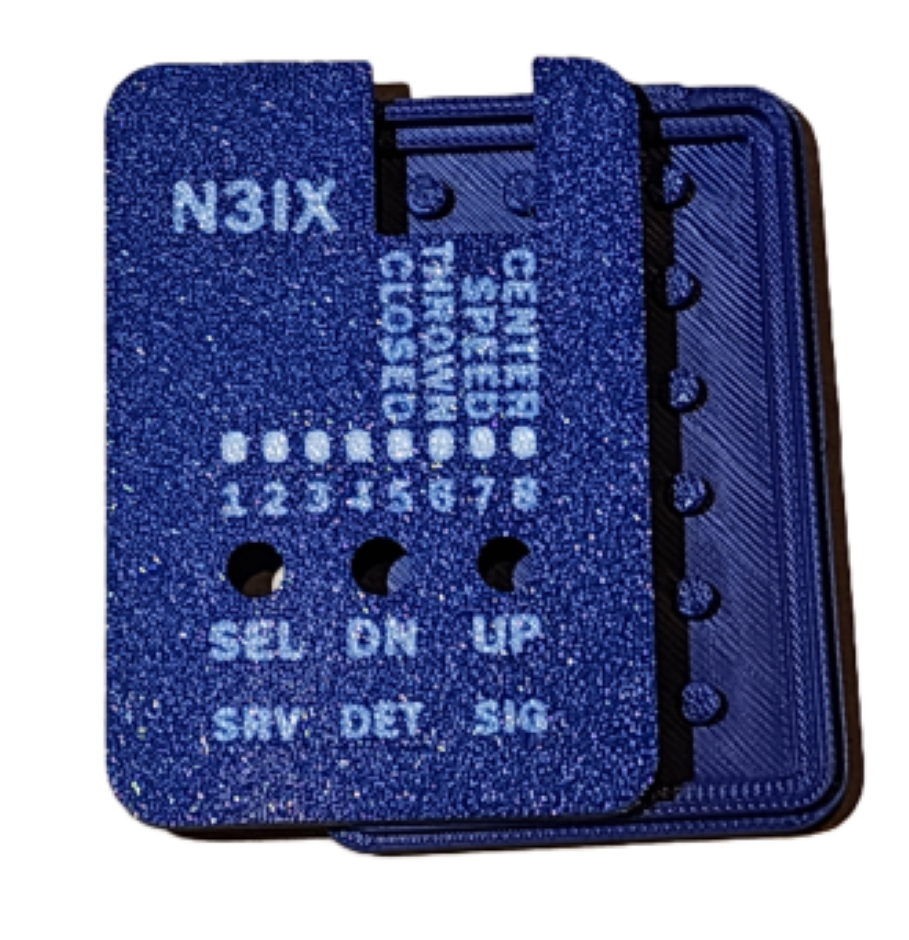

3D Printed Case Only

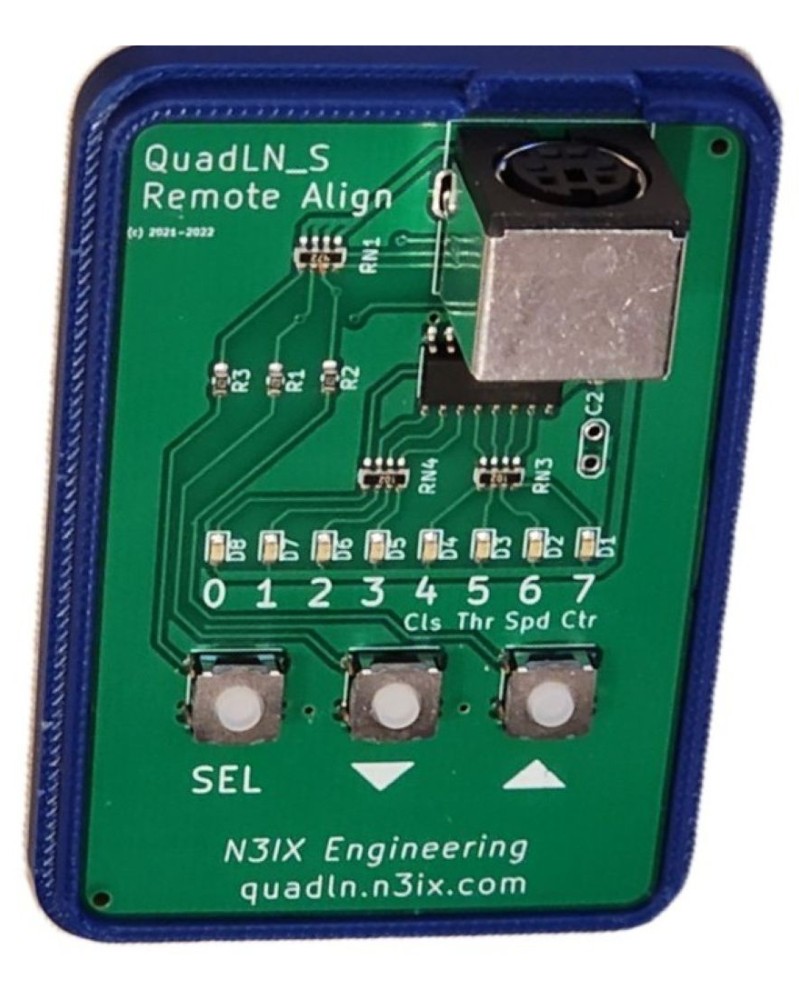

Case for Remote Align Boards made by N3IX Engineering
Case – Only for N3IX Engineering boards
There are 3 different flavors of the Remote Align Board made by N3IX Engineering so be sure to pick the case that matches your board: current production board size (43.5mm wide) with Black Buttons; current production board size (43.5mm wide) with White Buttons; or early production / smaller border size (37.5mm wide).
$5.95 case only for N3IX Engineering Remote Align Boards

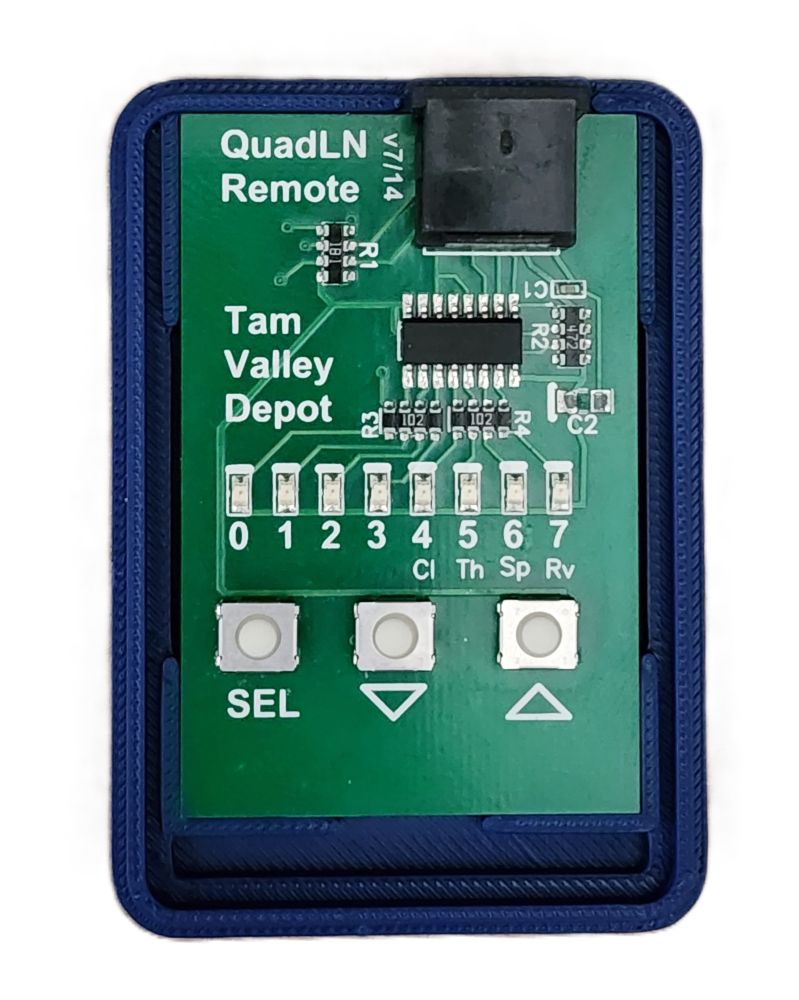

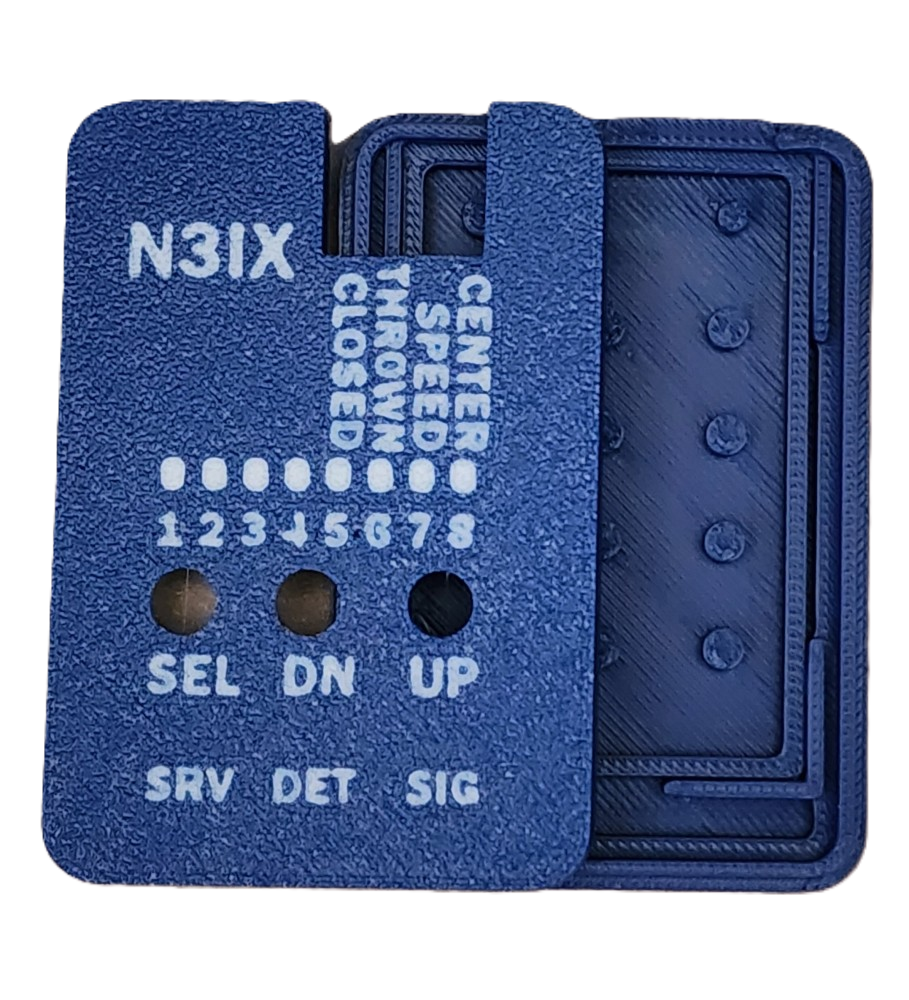

Case For Remote Align Boards made by Tam Valley Depot
Case – Only for Tam Valley Depot “v7/14” QuadLN Remote Align Board

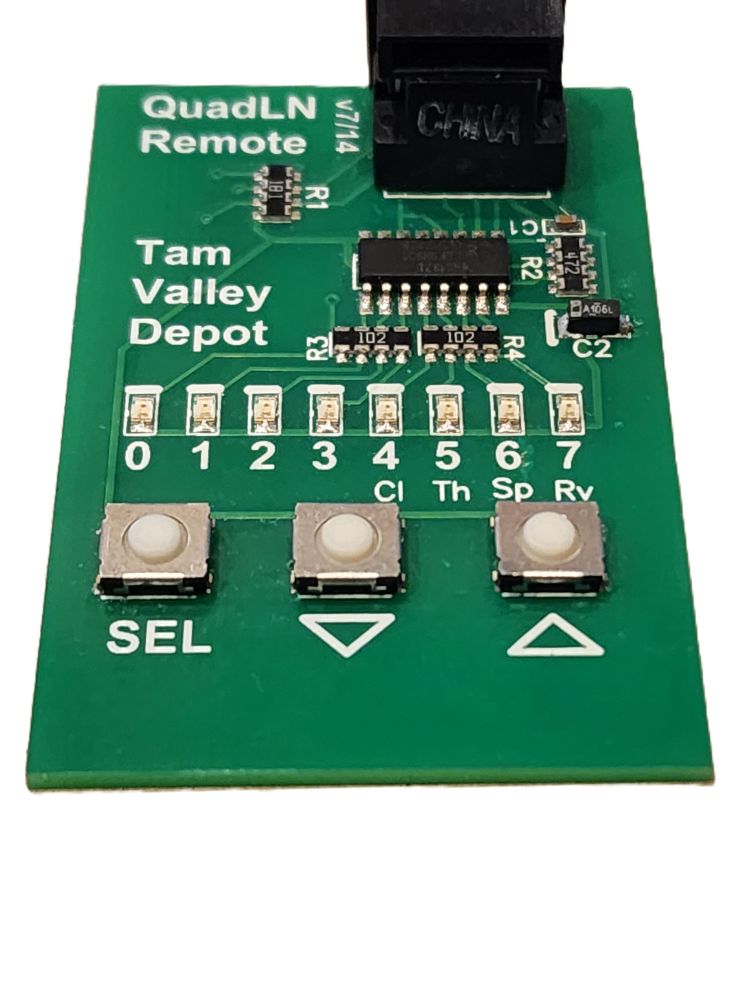

Check the photo below. If your board is marked “v7/14” and the pushbuttons look like the ones in the photo, then this is the case for your board.
$5.95 case only for Tam Valley Depot “v7/14” Remote Align Boards

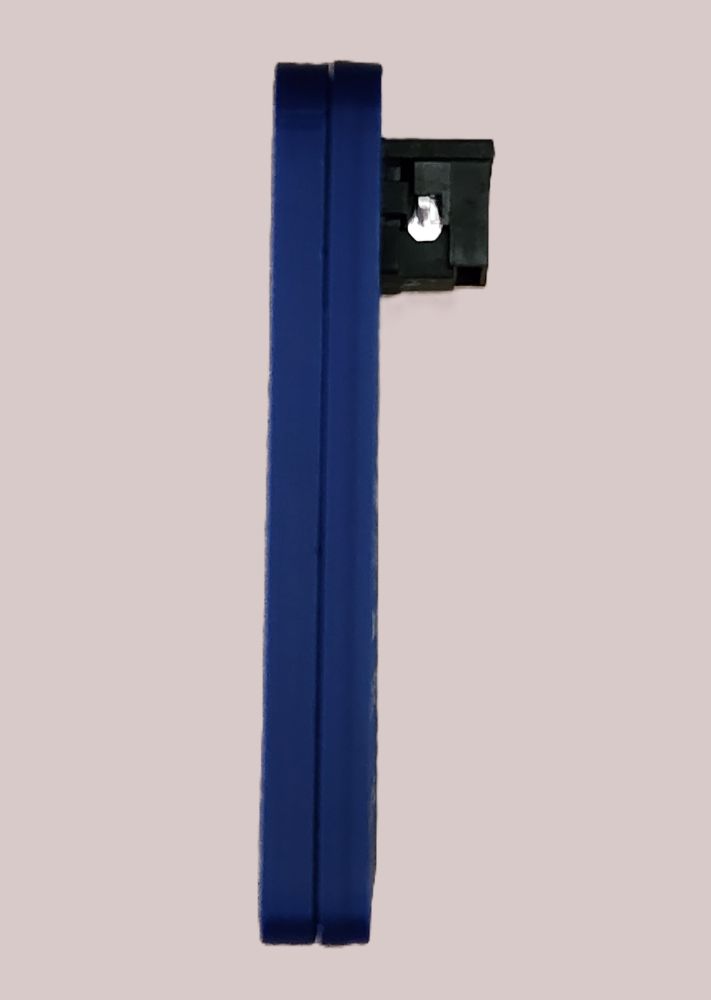

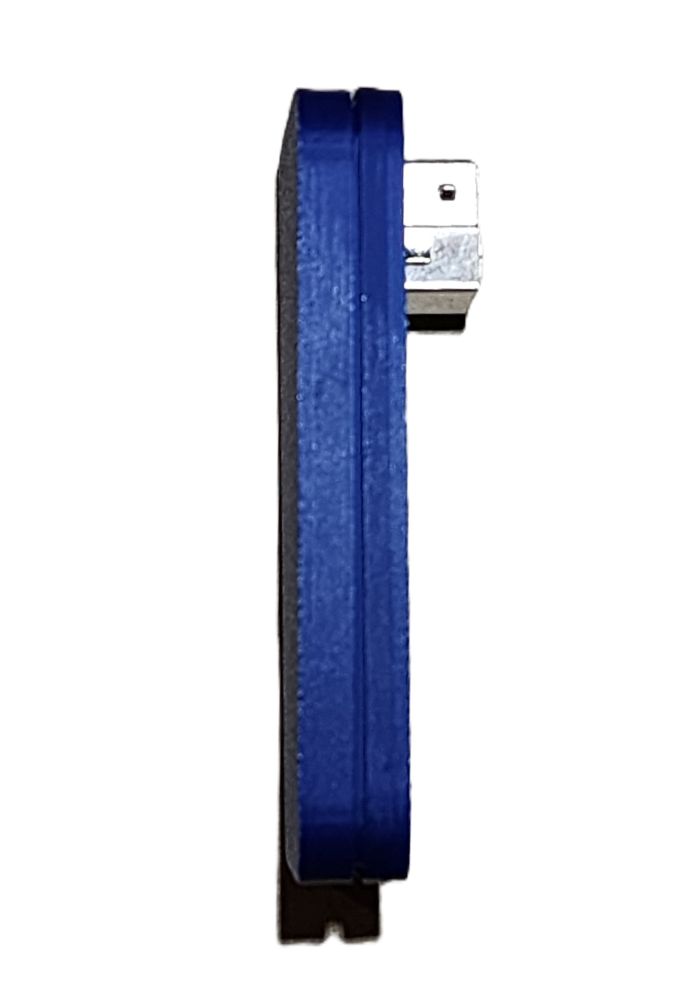

Installing your Remote Align Board into the Case
Insert board into the case bottom. Align as shown.
