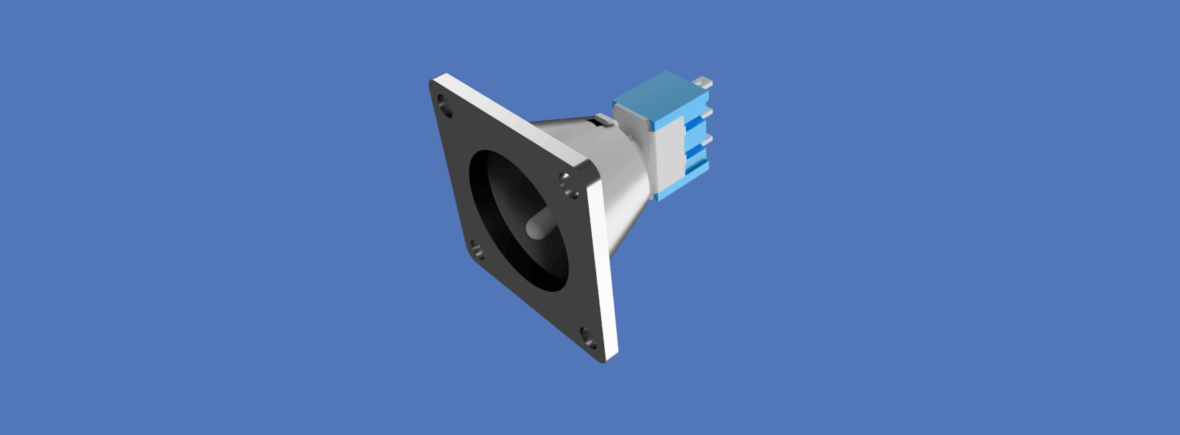

Recessed Toggle Switch Mounting Bracket
The Recessed Toggle Switch Mounting Bracket allows a subminiature toggle switch to be cleanly mounted to the fascia. The mount helps protect the toggle handle from accidental bumping while still allowing easy access. The mount is 3D printed in black Polymaker PLA Pro filament. Comes with four #4 x 3/8″ black self-tapping screws.
Note: Toggle Switch is not included.

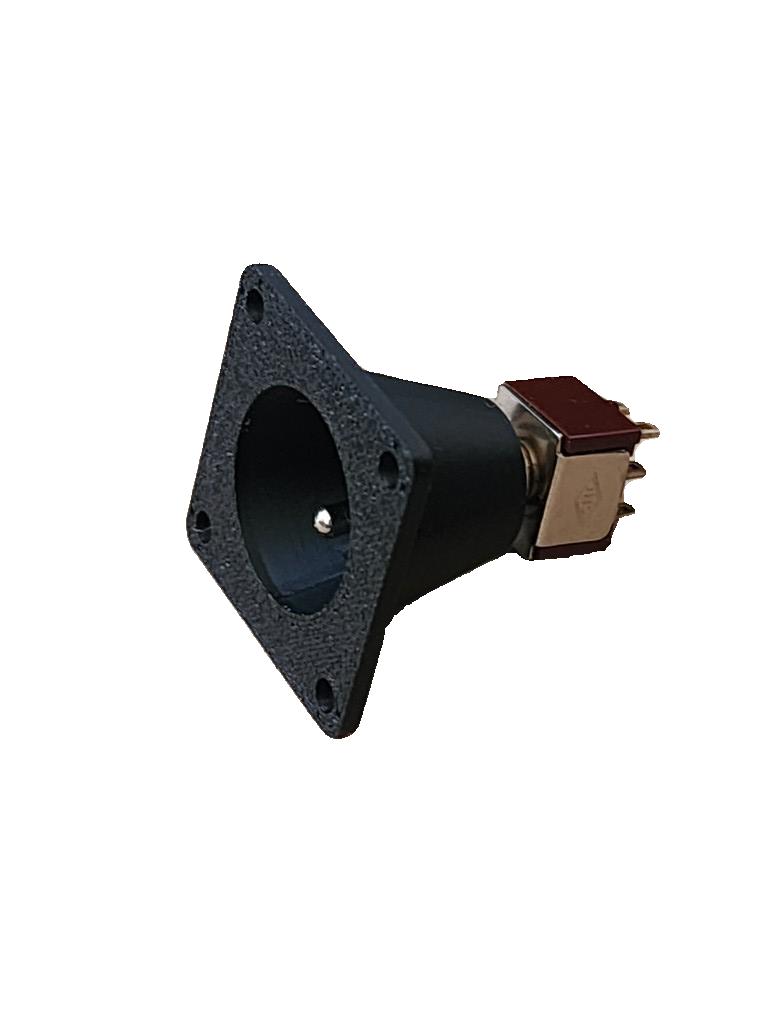

Recessed Toggle Switch Mounting Bracket

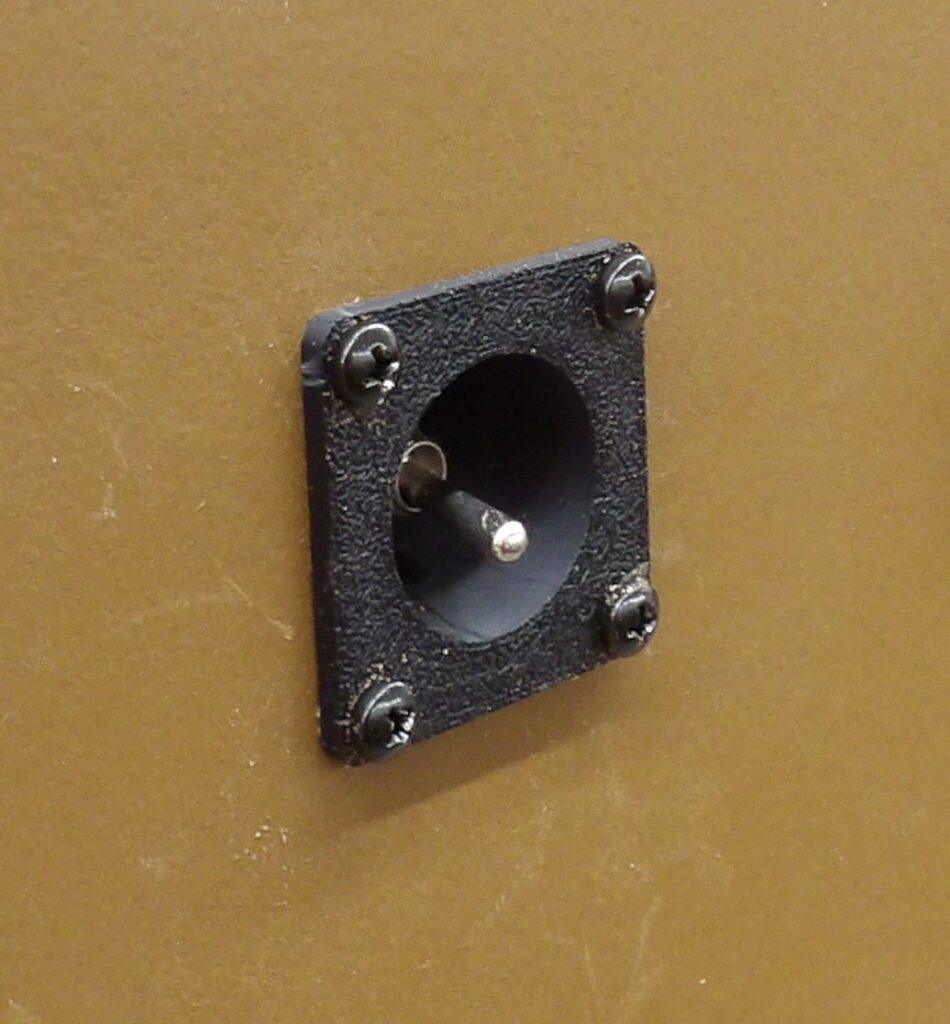

photo courtesy of Superior Model Railroads
$3.95
Assembly

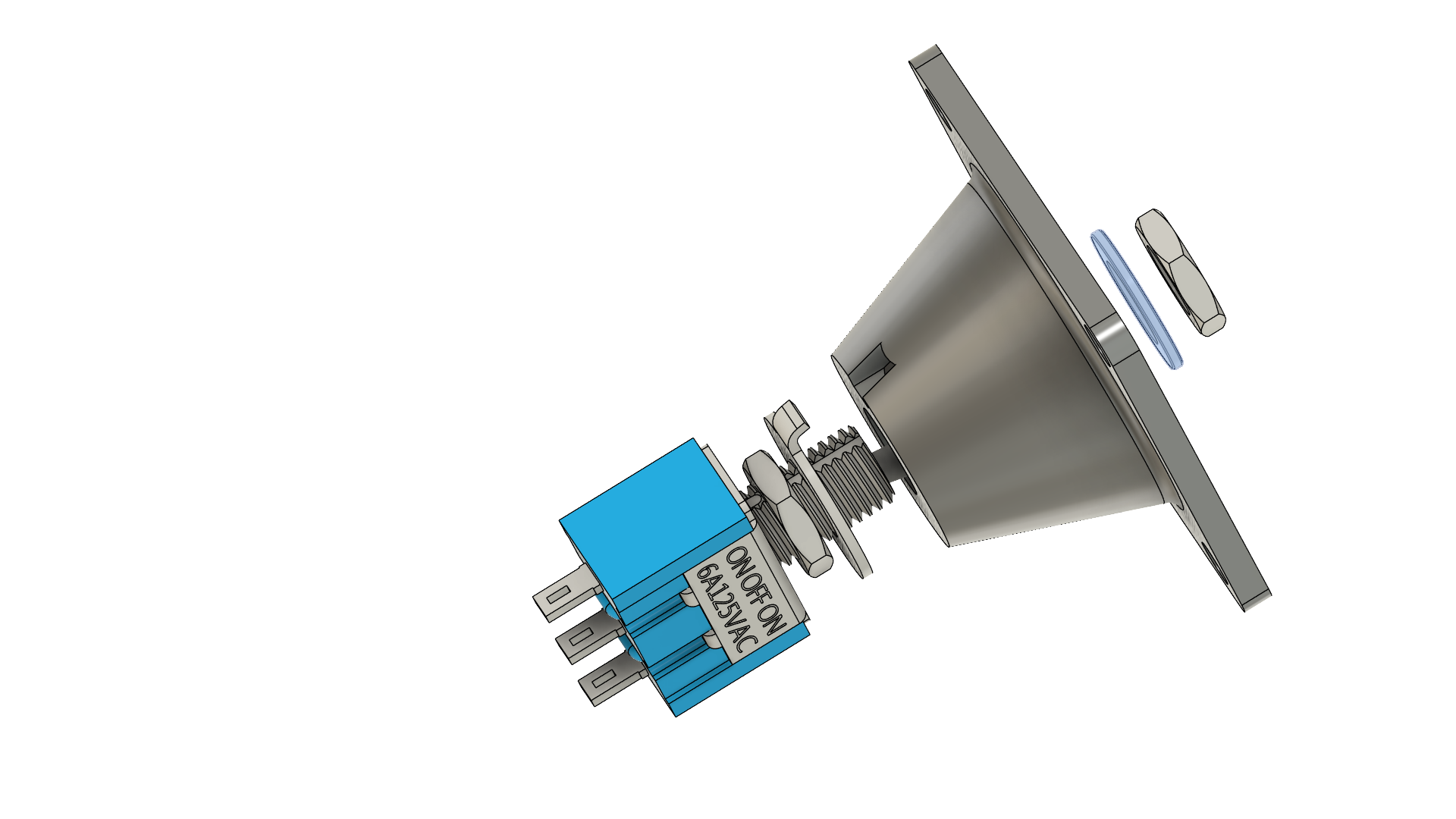

The exploded view shows how to attach your toggle switch to the mount. First install the back nut onto the bushing and then insert the anti-rotation ring. The tab on the anti-rotation ring should face out. Next insert the switch into the hole in the mount and rotate the switch so that the tab on the anti-rotation ring fits into the mating slot in the mount. Adjust the back nut so sufficient threads protrude through the front of the mount to accommodate the flat washer, lock washer and the front nut. Install those items on the bushing and gently tighten the front nut until it engages with the lock washer. Do not overtighten the nut.
